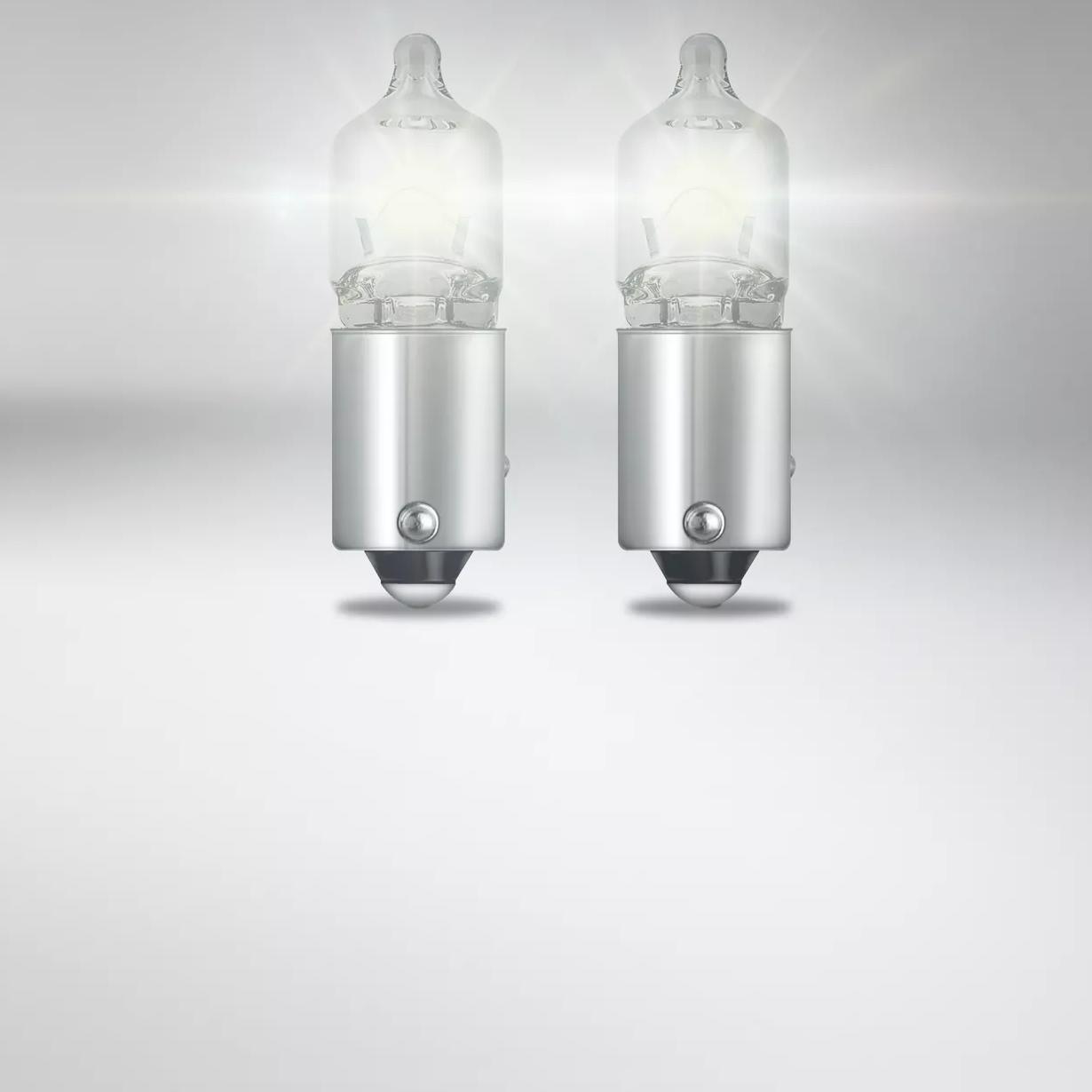

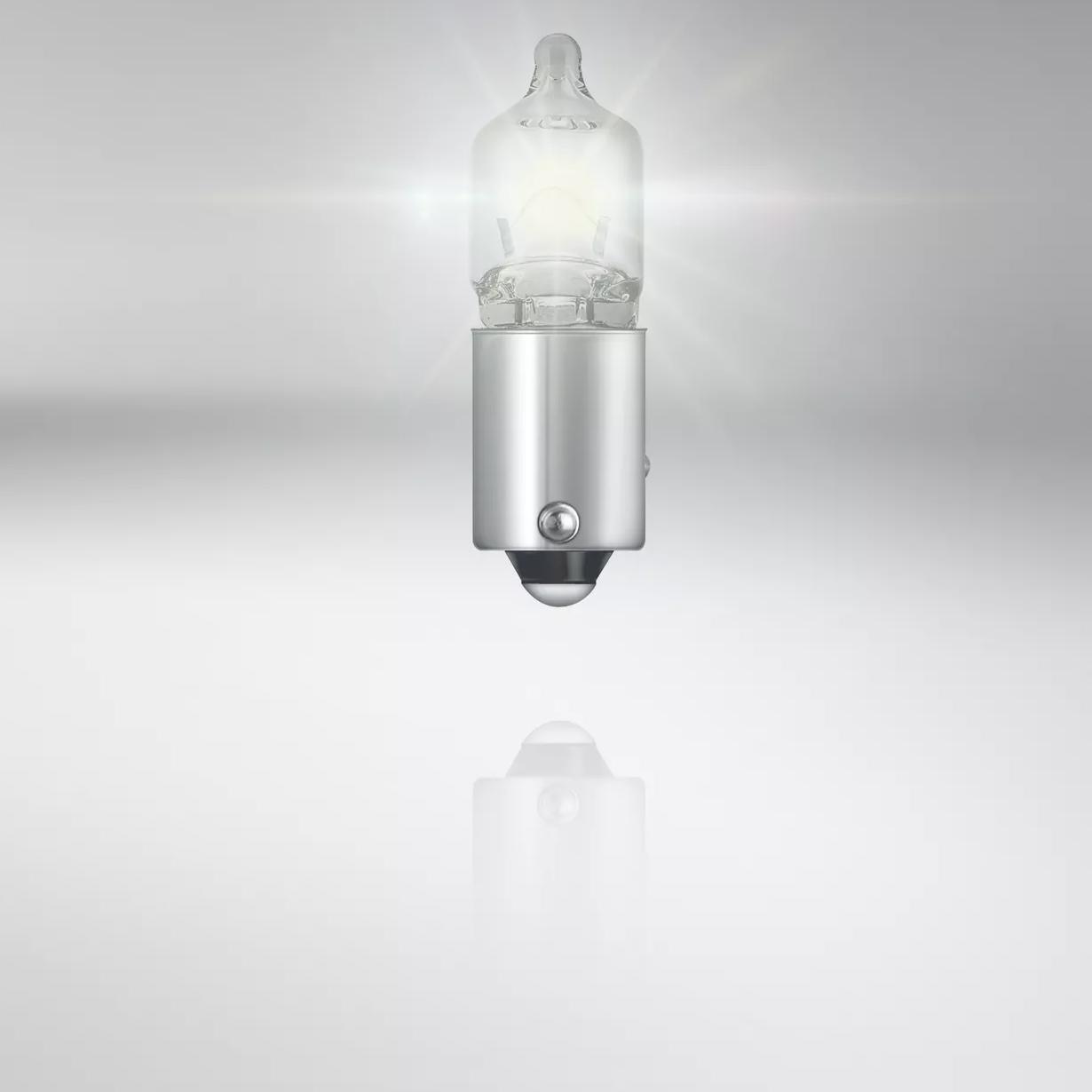

ORIGINAL - METAL BASE H6W
The cost-effective original spare parts for motorcycles
Discover OSRAM´s ORIGINAL signal lamps with metal bases - high-quality original spare parts for motorcycle lamps. Due to the wide product range, the lamps can be used for different applications. Use these lamps for example as position and parking lights or for number plate and side position lights of your motorcycle.
Technical Data
Product information
Application (Category and Product specific)
Auxiliary lamp
General Product Information
Global order reference
64132
Electrical Data
Power input
7 W
Nominal voltage
12 V
Nominal wattage
6 W
Power input tolerance
±5 %
Test voltage
13.5 V
Photometric Data
Nominal luminous flux
125 lm
Luminous flux tolerance
±12 %
Physical Attributes & Dimensions
Lamp base
BAX9s
Length
33.0 mm
Diameter
9 mm
Product weight
2.30 g
Lifetime Data
Lifespan B3
350 hr
Lifespan Tc
700 hr
Capabilities
Technology
AUX
Certificates & standards
ECE category
H6W
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Primary article identifier
4008321360274 | 4008321094896 | 4008321115300 | 4050300883250 | 4008321360151
Candidate list substance 1
No declarable substances contained
Declaration no. in SCIP database
No declarable substances contained
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4008321094902 |
FS
| 10 | 54mm x 40mm x 138mm | 36.00g | 0.30dm³ |
| 4008321094919 |
VS
| 50 | 205mm x 144mm x 64mm | 230.00g | 1.89dm³ |
